Description
The STE2200M RF Shield Box provides a compact, controlled environment for wireless device testing. Its benchtop design works well for smaller devices and test setups. Engineers can use the enclosure for development, validation, troubleshooting, laboratory, and production applications.
The STE2200M provides high RF isolation to reduce outside interference during testing. This controlled environment helps engineers achieve more consistent and repeatable RF test results.

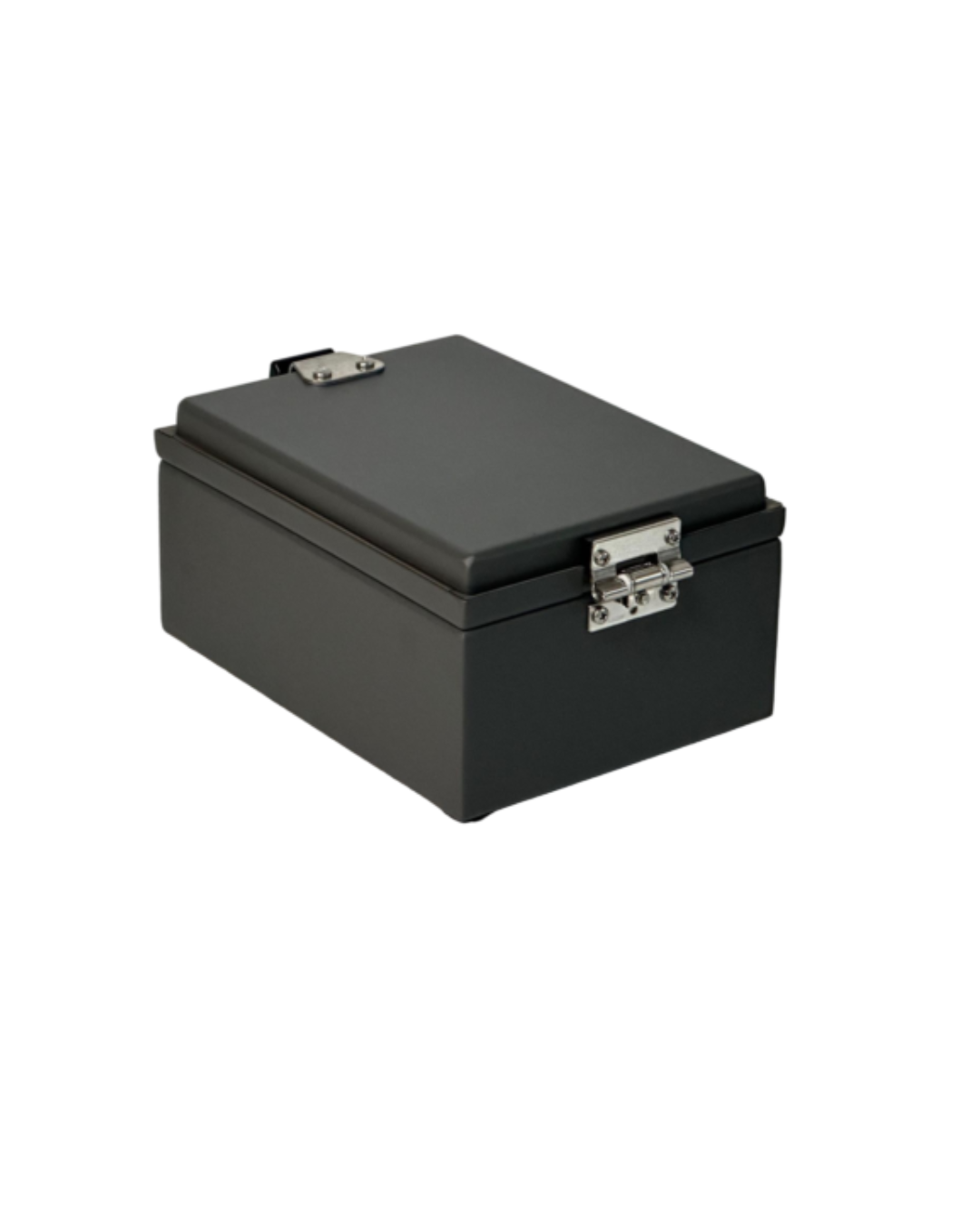

A top-loading swing-away door provides convenient access to the device under test. The enclosure also uses a double-lip RF-tight gasket to help maintain shielding performance when closed.
The STE2200M includes a 3/4-inch insertion-loss RF absorbent foam liner. This material helps control RF energy inside the enclosure and supports a more controlled test environment.

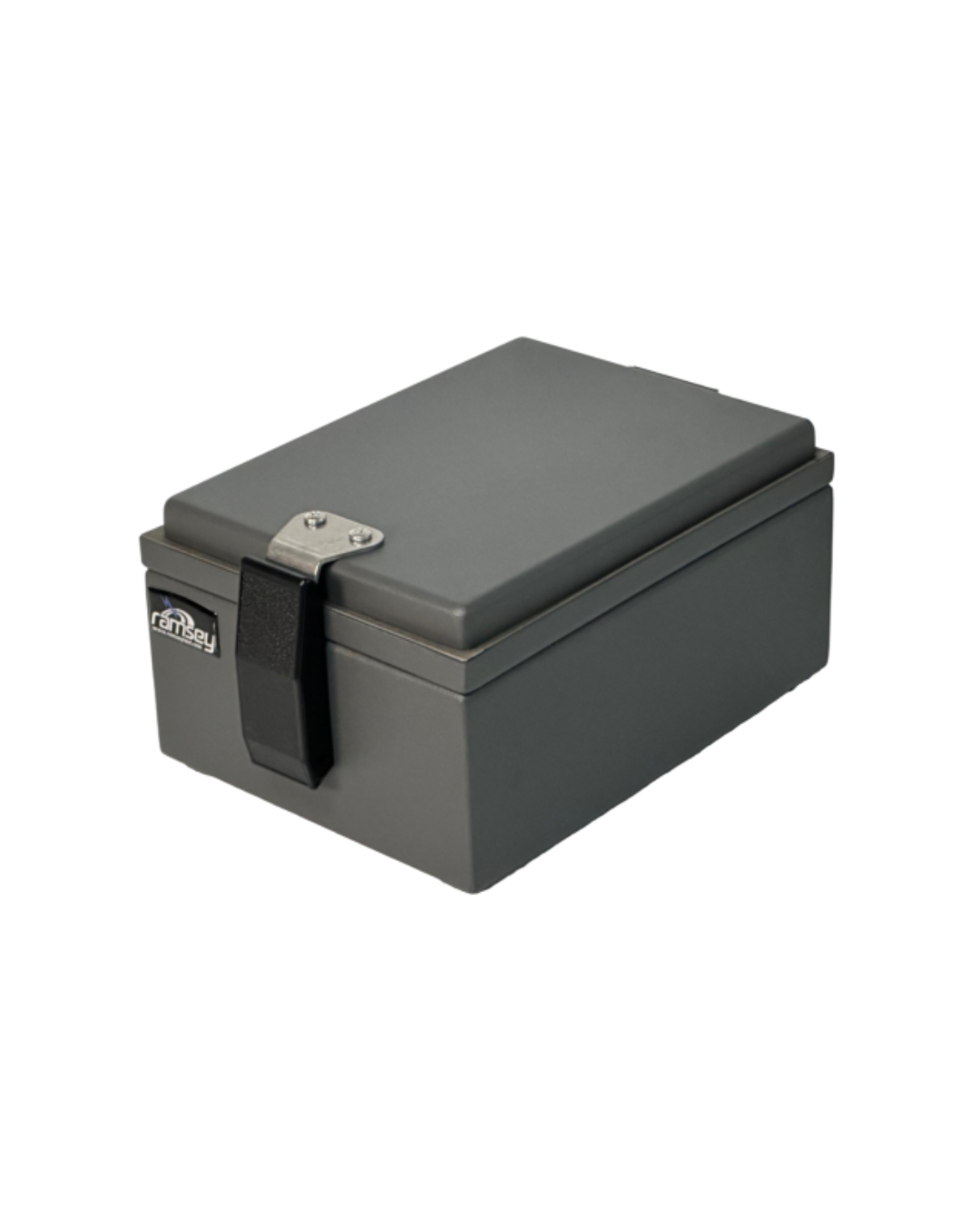

STE2200M RF Shield Box for Wireless Testing
The compact enclosure gives engineers a practical solution when a larger RF test chamber is not required. Users can customize the STE2200M around the requirements of their specific RF test application.
The enclosure starts as a blank configuration. Engineers can select the connections, power, and ventilation options needed for their equipment and testing requirements.
An optional 60 mm passive ventilation system can provide airflow when required. Optional 12 VDC, 115 VAC, and 230 VAC fan configurations are also available.
The STE2200M RF Shield Box supports a wide range of wireless technologies. Applications include Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Bluetooth, RFID, 3G, 4G, and 5G testing.
Engineers can use the STE2200M for wireless product development, device validation, RF troubleshooting, performance testing, and manufacturing applications.
Its combination of high RF isolation, compact size, RF absorbent material, and customizable configuration makes the STE2200M a flexible platform for wireless testing.
