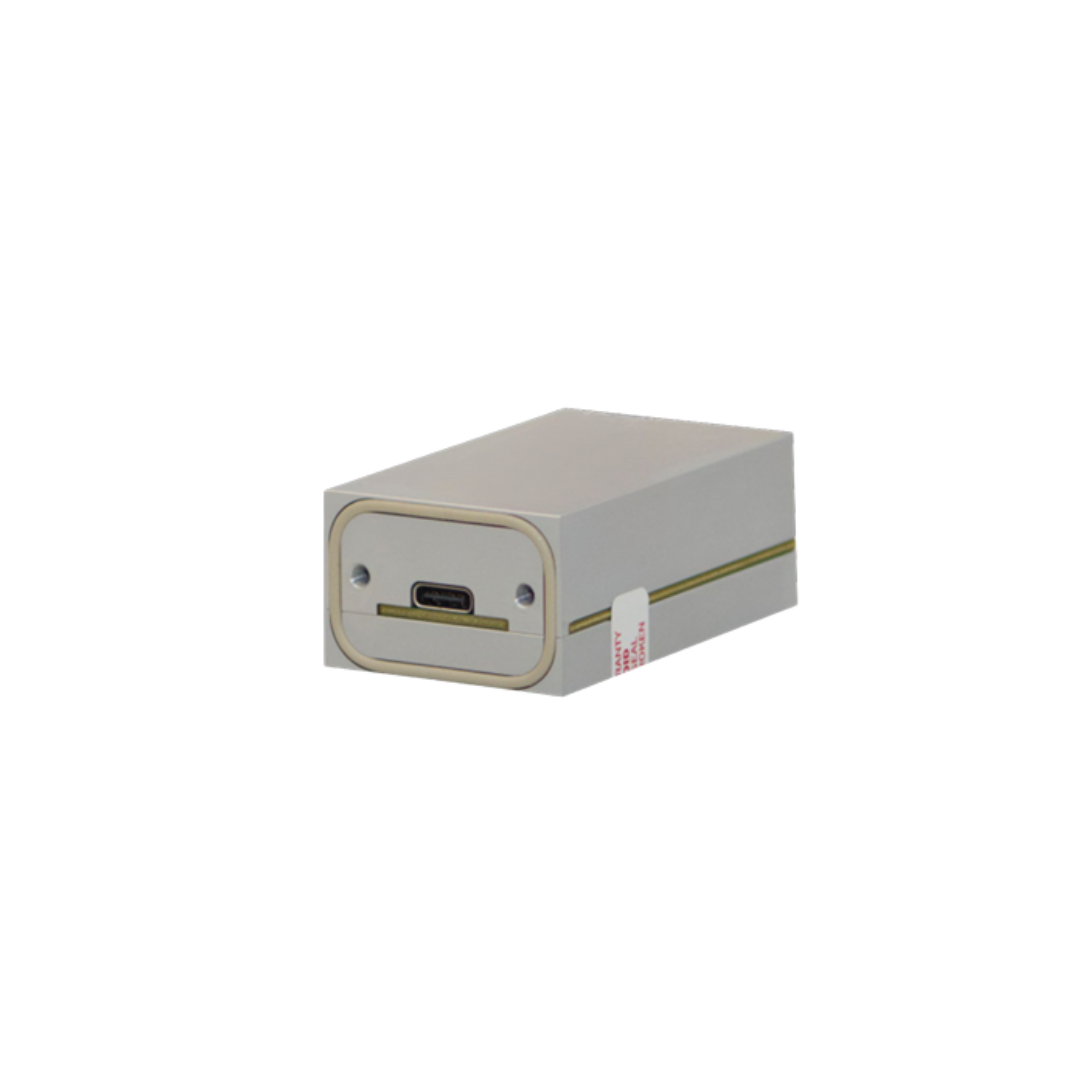

USB 3.2 C Feed thru Filter for Shielded Enclosures
The USB 3.2 C Feed thru Filter is designed for applications where high-speed USB-C signals must pass through a shielded wall while maintaining signal integrity and minimizing electromagnetic interference. This filter allows engineers to route USB-C data and power through RF-shielded panels without compromising EMI control or performance.
Because USB-C connections can introduce unwanted noise into sensitive systems, proper filtering is critical in EMI-controlled environments. This feed thru filter helps preserve clean data transfer and stable power delivery in demanding test and industrial applications.
High-Speed USB-C Performance and Power Support
This USB 3.2 C Feed thru Filter supports USB 3.2 Gen 2×2, enabling data rates of up to 20 Gbps. In addition, it accommodates USB Power Delivery up to 5 A, 20 V, and 100 Watts, making it suitable for high-power devices and peripherals.
By supporting both high data rates and power delivery, the filter allows a single USB-C connection to meet modern system requirements without additional pass-throughs or adapters.
Reciprocal Design for Flexible Installation
The filter features a reciprocal design, which means it can be mounted in either direction. This flexibility simplifies installation and reduces assembly constraints during system integration.
With panel-mountable USB-C connectors on both ends, engineers can maintain shielding continuity while routing connections cleanly through enclosure walls. This design supports consistent performance regardless of mounting orientation.
Built for EMI-Sensitive Environments
The USB 3.2 C Feed thru Filter helps suppress conducted EMI that can enter or exit through USB connections. As a result, it supports reliable operation in environments with high RF activity or strict EMI requirements.
Common use cases include shielded enclosures, RF test systems, industrial control panels, and secure electronics cabinets where signal integrity and EMI control are critical.
Typical Applications
This USB-C feed thru filter is commonly used in:
-
RF shield boxes
-
Shielded test enclosures
-
EMI-controlled laboratory systems
-
Industrial and automation equipment
-
Secure electronics and test cabinets
