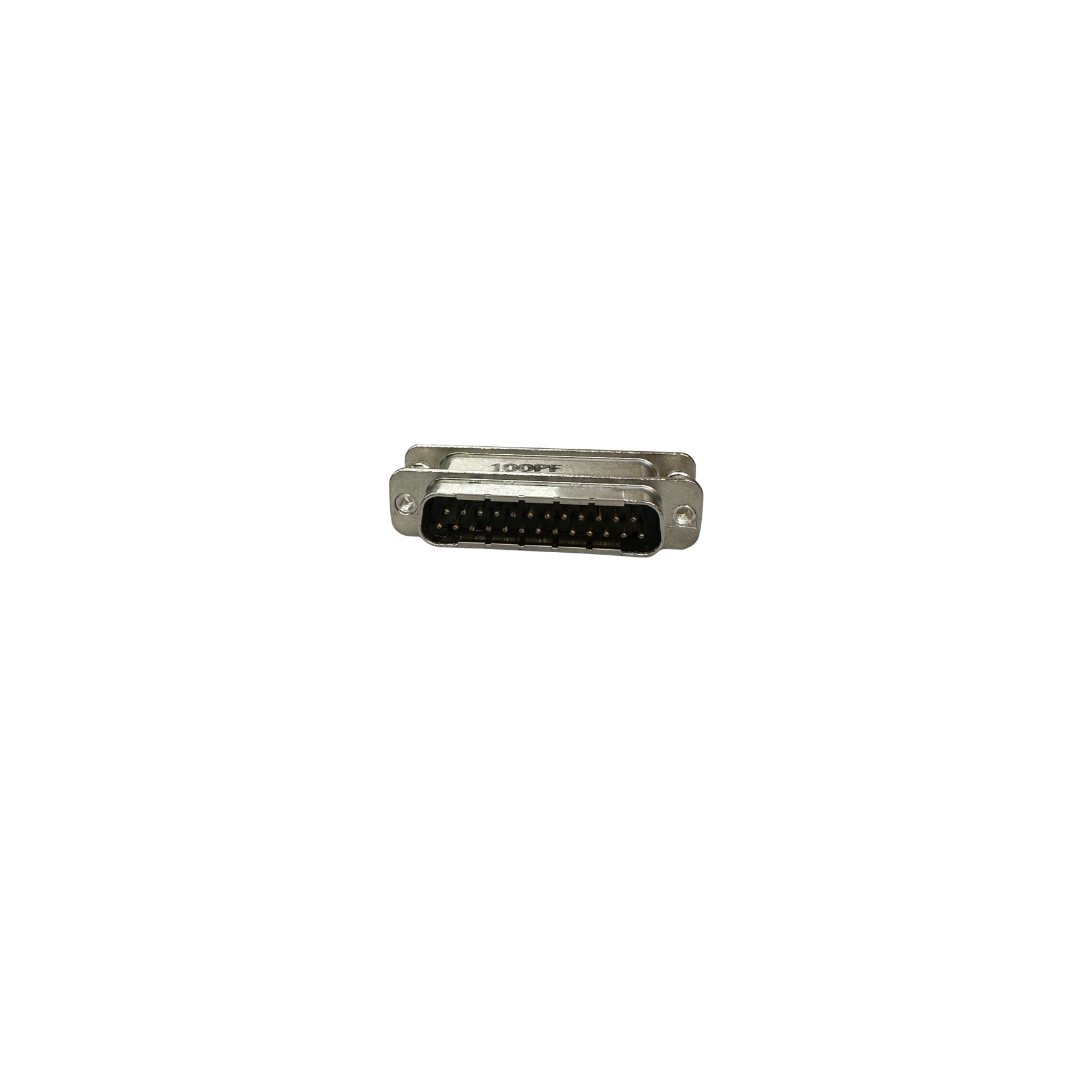

DB25 100pF Filter Connector
The DB25 100pF Filter Connector is an EMI/RFI-filtered D-sub connector designed to deliver reliable, interference-free data transmission in sensitive electronic and RF environments. This DB25 100pF filter connector provides effective noise suppression while maintaining stable signal performance, making it ideal for applications where electromagnetic interference can compromise system accuracy.
Engineers commonly use the DB25 100pF filter connector in RF shield boxes, industrial electronics, and telecommunications systems. Because these environments often combine power, data, and RF signals in close proximity, proper connector-level filtering is essential for maintaining signal integrity and dependable system operation.
EMI/RFI-Filtered DB25 Connector for RF Applications
This EMI/RFI-filtered DB25 connector supports a typical data rate of up to 10 Mbps and operates at a line voltage of 100 VDC with current handling of up to 5 Amps. These electrical characteristics make it well suited for control, monitoring, and data acquisition systems used in RF and industrial applications.
The DB25 100pF filter connector delivers consistent shielding performance across a wide frequency range. It provides greater than 50 dB shielding from 0.5 to 2 GHz, greater than 60 dB from 2 to 3 GHz, and greater than 60 dB from 3 to 6 GHz. As a result, it effectively blocks unwanted electromagnetic noise that can disrupt sensitive data lines.
Filtered Connector for RF Shielded Enclosures
Because RF shielded enclosures require controlled signal paths, engineers rely on filtered connectors to prevent interference from entering or exiting the enclosure. For this reason, the DB25 100pF filter connector plays a critical role in maintaining clean data transmission in RF test setups.
In addition, the rugged construction of this connector supports long-term use in demanding laboratory, validation, and production environments. It maintains stable electrical performance through repeated connections and extended operating cycles, which is essential for mission-critical systems.
Key Features & Benefits
-
DB25 100pF filter connector with integrated EMI/RFI suppression
-
Supports data rates up to 10 Mbps
-
Rated for 100 VDC and up to 5 Amps
-
Reliable shielding performance from 0.5 GHz to 6 GHz
-
Improves signal integrity in RF environments
-
Durable design for industrial and telecommunications use
Typical Applications
The DB25 100pF Filter Connector is commonly used in:
-
RF shield boxes and shielded enclosures
-
RF test and measurement systems
-
Industrial control electronics
-
Telecommunications equipment
-
Sensitive electronic and data systems
