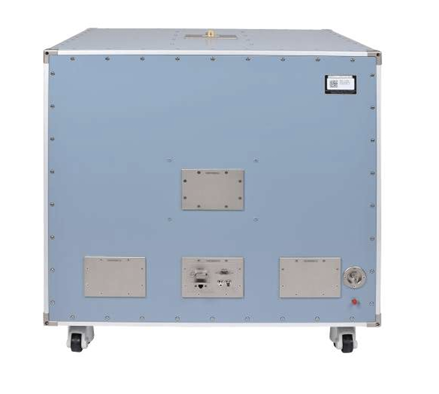

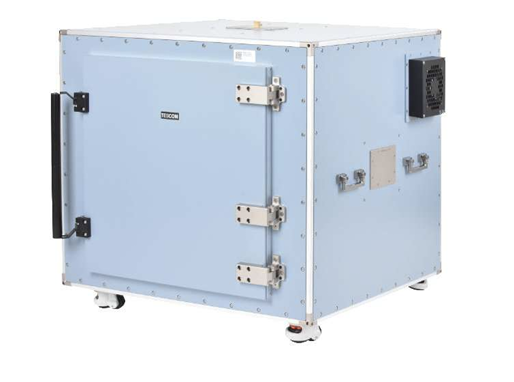

Description
The TC-5570A Shield Box delivers consistent RF isolation for engineers, manufacturers, and test labs that require controlled wireless testing environments. Designed for performance and durability, this RF shielded test enclosure supports accurate testing of Wi-Fi, Bluetooth, cellular, and IoT devices while preventing outside signal interference.
The TC-5570A Shield Box creates a secure testing chamber that isolates devices under test (DUT) from ambient RF noise. This isolation improves measurement accuracy, reduces false readings, and ensures repeatable results across production and R&D environments.
Engineered for Performance & Durability
Built with high-quality shielding materials, the TC-5570A Shield Box offers dependable signal containment and EMI protection. The enclosure features a secure RF-sealed lid system that maintains strong isolation performance throughout repeated open-and-close cycles.
Its compact footprint makes it ideal for benchtop testing while still accommodating a wide range of wireless devices. The box also supports customizable I/O configurations, allowing integration with filtered connectors, power lines, USB, Ethernet, or RF feedthroughs depending on your testing requirements.
Ideal Applications
The TC-5570A Shield Box is commonly used for:
-
Wireless device production testing
-
IoT product validation
-
Cellular and Bluetooth testing
-
EMI troubleshooting
-
Secure RF signal containment
Manufacturers rely on this shield box to streamline automated test processes and maintain compliance with regulatory testing standards.
Why Choose the TC-5570A Shield Box?
When accuracy matters, controlled RF isolation is essential. The TC-5570A Shield Box helps eliminate environmental variables, allowing your team to focus on performance validation and quality control.
If you need a dependable RF shielded enclosure that integrates easily into your workflow, the TC-5570A Shield Box delivers consistent results.
Typical RF Shielding
Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
| Frequency |
Shielding effectiveness (dB) |
| 26 to 40 GHz |
> 60 dB |
| 40 to 50 GHz |
> 60 dB |
| 50 to 67 GHz |
> 60 dB |
Custom Configurations
TC Manual RF Shield Box Custom I/O Interface Panel
Customized I/O Interface panels are available. Please contact the CTS sales team for more information
| I/O Interface | Order Number | Typical Data Rate/Line Voltage | Typical Shielding* |
DB37, 1000pF pi Filter | 3409-0012-1 | 3 Mbps / 100 VDC,
5 Amps max | >70 dB from 0.5 to 2 GHz
>80 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
DB25, 1000pF pi Filter | 3409-0009-1 | 3 Mbps / 100 VDC,
5 Amps max | >70 dB from 0.5 to 2 GHz
>80 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
DB25, 100pF pi Filter | 3409-0014-1 | 10 Mbps / 100 VDC,
5 Amps max | >50 dB from 0.5 to 2 GHz
>60 dB from 2 to 3 GHz
>60 dB from 3 to 6 GHz |
DB9, 1000pF pi Filter | 3409-0008-1 | 3 Mbps / 100 VDC,
5 Amps max | >70 dB from 0.5 to 2 GHz
>80 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
DB9, 100pF pi Filter | 3409-0010-1 | 10 Mbps / 100 VDC,
5 Amps max | >50 dB from 0.5 to 2 GHz
>60 dB from 2 to 3 GHz
>60 dB from 3 to 6 GHz |
USB 2.0 Filter | 3409-0018A-3 | 480 Mbps / 5 V, 500 mA /
Max Current: 5A | >60 dB from 0.5 to 2 GHz
>70 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
USB 3.0 Filter(Active) | 3409-0042A-1 | 5000 Mbps / 5 V, 900 mA /
Max Current: 1.5 A | >70 dB from 0.5 to 2 GHz
>70 dB from 2 to 3 GHz
>55 dB from 3 to 6 GHz |
RJ-45 Filter | 3409-0022A | 1 Gbit/s Copper-Line
Ethernet (1000 BASE-T) | >60 dB from 0.5 to 2 GHz
>70 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
DC Power Adaptor | 3406-0004A | 50 VDC,
3 Amps max | >70 dB from 0.5 to 2 GHz
>80 dB from 2 to 3 GHz
>80 dB from 3 to 6 GHz |
DC Power Adaptor,
Banana Jack Type | 3406-0005A
3406-0006A | 50 VDC,
10 Amps max | >70 dB from 0.5 to 2 GHz
>80 dB from 2 to 3 GHz
>80 dB from 3 to 6 GHz |
AC Power Adaptor | 3103-0009A | 250 VAC,
7 Amps max | >70 dB from 0.5 to 2 GHz
>80 dB from 2 to 3 GHz
>80 dB from 3 to 6 GHz |
RF, N-SMA Connector | 3408-0038 | | >60 dB from 0.5 to 2 GHz
>70 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
RF, SMA-SMA Connector | 3408-0039 | | >60 dB from 0.5 to 2 GHz
>70 dB from 2 to 3 GHz
>70 dB from 3 to 6 GHz |
*SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
- Each shielding effectiveness is measured when each I/O interface panel, which is shown above, is mounted.
- Above data was measured by Tescom, The Shielding Effectiveness might be different based on the measuring method and condition.
- This data has been measured under the condition that the cables are not connected to each filters. When the cables are connected it can affect the shielding performance.
