Description

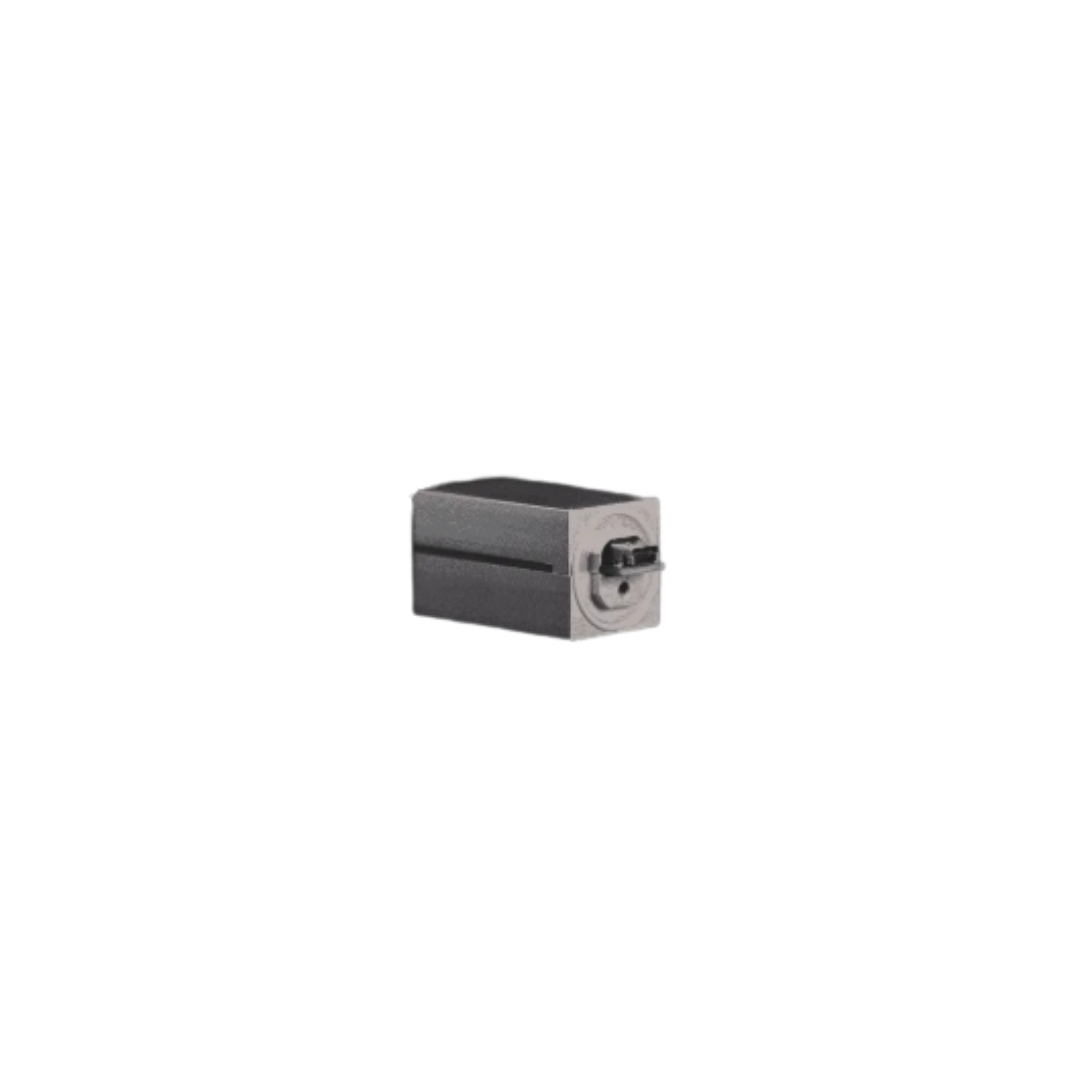

The USB 2.0 Mini Feedthrough Filter is designed to route USB signals through shielded panels and enclosures while reducing electromagnetic interference. This compact, panel-mount solution supports USB connections without compromising enclosure shielding, making it ideal for laboratory, industrial, and test environments where clean signal transmission is critical.
Because USB cables often act as entry points for interference, using a filtered feedthrough helps protect sensitive electronics and maintain stable system performance.
USB Mini Feedthrough Filter Performance and EMI Control
This USB 2.0 Mini Feedthrough Filter supports USB 2.0 Hi-Speed data transfer up to 480 Mbps, allowing reliable communication between connected devices. Integrated EMI filtering suppresses conducted noise that can enter or exit through USB cabling.
As a result, engineers can maintain signal integrity while preserving the shielding effectiveness of the enclosure. This makes the filter well suited for EMI-controlled test systems and RF-sensitive installations.
Panel-Mount Design and Durable Construction
The panel-mount design allows easy installation into control panels, RF enclosures, and test equipment. A USB Mini (female) connector on the front and a USB Type-A (female) connector on the rear provide flexible connectivity for various system layouts.
A durable aluminum housing delivers strong mechanical protection and effective EMI shielding. In addition, the compact form factor supports space-limited designs without sacrificing performance or reliability.
Typical Applications for USB Mini Feedthrough Filters
USB Mini Feedthrough Filters are commonly used in:
-
RF shield boxes
-
Shielded test enclosures
-
Laboratory instrumentation
-
Industrial control systems
-
EMI-controlled electronics cabinets
In each application, the filter helps maintain clean USB communication while reducing interference that could affect measurements or system operation.
